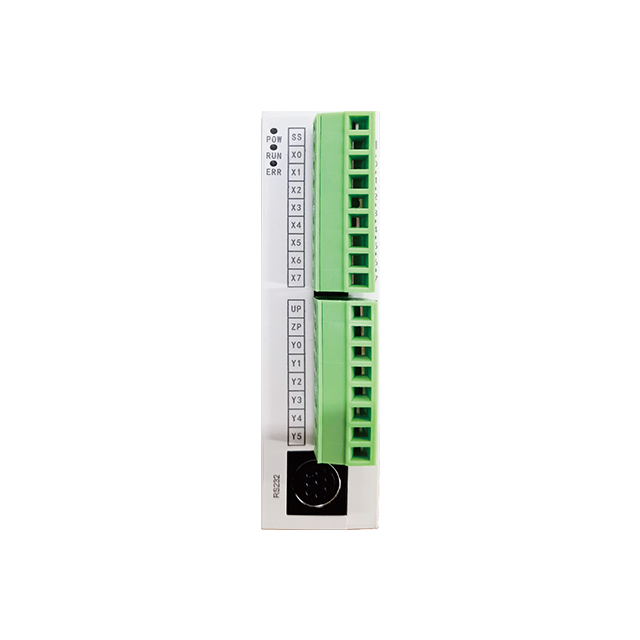

The JTC compact PLC series offers main units with 14-32 points and digital input/output expansion modules with 8-40 points. Including the main unit, the maximum input/output expansion can reach up to 256/256 points. Additionally, it supports expansion modules for analog input/output, temperature, and weighing, providing rich scalability and stable performance to meet the needs of various application scenarios.
Supports FOLLOW motion commands: Enables continuous motion tracking.
Supports TRACK: 2-axis planar continuous linear and circular interpolation.
Program capacity: 60K.
Comprehensive programming support: Supports mixed programming in C language, ladder diagrams, and SFC.
High-speed I/O: Supports up to 4 channels of AB-phase high-speed inputs and 12-axis high-speed outputs.
Ethernet functionality: Supports online monitoring, program downloads, MODBUS TCP/IP communication, and custom protocol communication.
Dual communication ports: Equipped with RS232 and two RS485 ports, enabling communication with HMIs or PCs. Compatible with MODBUS ASCII and MODBUS RTU protocols.
Advanced power-off retention: Permanently saves programs even in the event of a power failure.
Rich expansion options: Digital I/O can be expanded up to 512 points, with additional support for analog, weighing, and temperature expansion modules.
Program encryption: Offers the option to restrict program uploads to protect user intellectual property.
Flexible program downloading: Programs can be downloaded via a USB flash drive or dual-head USB cable, with faster communication speeds and download rates of up to 12 Mbps.
